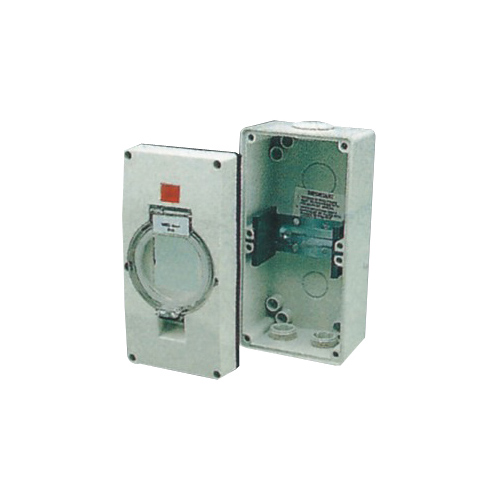

All LGL Mounting back boxes are moulded in UV stabilised rigid RVC to faclilitate glueing of fitting for conduit entry
ample conduit and cable entries are provided and there is plenty of wiring room for easy installation.
ALL screwed conduit entries are provided with plugs the multigang enclosures feature moulded bridges between modules to ensure switches and sockets sit flush in a cintinaous surface.moulded dividers are also available for multigang boxes to segregate services and are standard with 4,6,8,9and 16 gang enclosure
each enclosure has a nimber of mounting points and 220/10 sealing plugs are provided to double insulate mounting screw headsand ensure the IP rating
moulded gaskets are supplied with switch and socket modules
Options available
resistant orang -add RO to catalog number e.g.56e2 becomes 56 e2RO
catalogue number
No.of gang
O/A*dims (H)×（W）×（D）
mouting points
NO.of conduit entries(mm)
cut out provision(mm)
56E1
1
101×101×63
8
2×25,1×32
1×25/32
56ES1
1
101×101×38
4
2×25,1×20
1×20/25
56E2
2
198×101×63
8
2×25,1×32
1×25,1×32
56ED2
2
198×101×100
8
2×40
1×25,1×32
56ES2
2
198×101×38
4
1×25,2×32
2×20/25
56E2/4EL
2
198×101×105
8
2×25,1×32
1×25,1×32
56E3
3
294×101×63
16
2×25,1×32
2×25,1×32
56E4
4
198×198×63
16
2×25,2×32
2×25,1×32,1×40
56EVH
4
391×101×63
16
2×25,1×32
2×25,1×32,1×40
56E6
6
294×194×63
24
2×25,2×32
2×25,1×32,2×40
56E8
8
391×198×63
28
2×25,2×32
4×25,2×32,2×40
56E9
9
294×294×63
28
2×25,2×32
4×25,1×32,1×40
56E16
16
391×391×63
48
2×25,2×32
6×25,6×32,4×40
