500V plugs

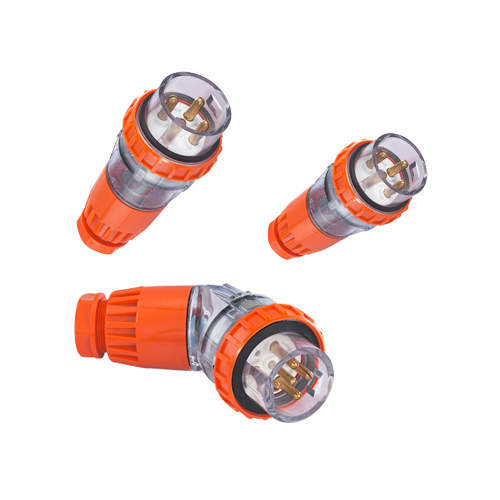

The plugs are all rated IP66 when fitted to a 56 series cord connector or socket qutlet.the body section is transparent for quick and easy inspection of the terminals and cable entey.plugs are available with 4 to 7 pins,16A to 50 A cover most application

catalogue number(angled) catalogue number (straight)		56p 416 56pa 416	56p 416k 56pa 416k	56p 420 56pa 420	56p 432 56pa 432	56p 432RF 56pa 432RF	56p 435 56pa 435	56p 440 56pa 440	56p 450 56pa 450	56p 516 56pa 516	56p 520 56pa 520	56p 532 56pa 532	56p 535 56pa 535	56p 540 56pa 540	56p 550 56pa 550	56p 616 56pa 616	56p 716 56pa 716	56p 720 56pa 720
rated operational voltage ue(-50HZ)	volts	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500
max thermal current endclosed	amps	16	16	20	32	32	35	40	50	16	20	32	35	40	50	16	16	20
number of pins(including earth)		4	4	4	4	4	4	4	4	5	5	5	5	5	5	6	7	7
pin configuration
cable entry diameter	min max	7 16	7 16	7 16	10 27	10 27	10 27	10 27	10 27	7 16	7 16	10 27	10 27	10 27	10 27	7 16	7 16	7 16
terminal capacity mm2	min max	1 6	1 6	1 6	2.5 16	2.5 16	2.5 16	2.5 16	4 16	1 16	1 16	2.5 16	2.5 16	2.5 16	4 16	1 16	1 16	1 16
auciliary pins c1-c2 maximum current																10A	10A	10A
