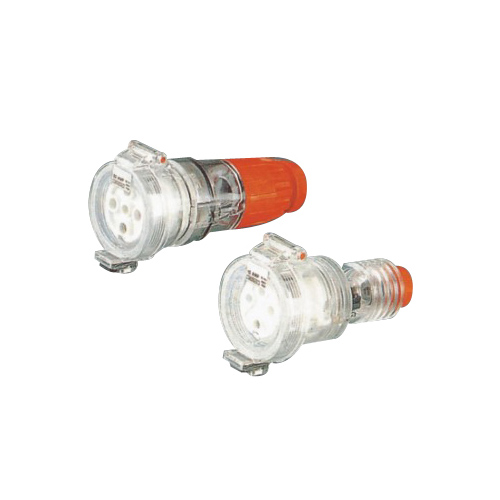

LGL’s three phase extension socket/appliance connector is an important design breakthrough.now there is a common until for both cord extension socket and appliance connector applications.All connectors have impact resistant.UV stabilised mouldings
The IP66 rating can be achieved when extension socket/connectors are used in conjunction with compatible accessories such as 56p plugs,56pa plugs and 56A1 applicance inlets
IP66 rated units feature a hose proof cap which maintains the intermational protection rating when the accessory is not being used |
| note:cap not provided as standard with single phase extension sockets.refer 56t series for terminators to connect hose to non standard gland nut thread. |
option available
56sc2 socket cap to suit single phase extension sockets
56csc310 and 56csc315 available in resisitant orage-add RO to catalogue number e.g.56csc310 becomes 56csc 310 RO | |
|
catalogue number |
l(A) |
u(V) |
NO.of socket |
comductor term size in mm2 |
cable nominal diameter in mm2 |
ip rating |
matching plug straight |
matching plug angle |
gland nut thread |
|
min. |
max. |
min. |
max. |
|
56csc310 |
10 |
250 |
3 flat |
1.0 |
6 |
6 |
12.5 |
66 |
56p310 |
56pa310 |
20mm |
|
56csc315 |
15 |
250 |
3 flat |
1.0 |
6 |
6 |
12.5 |
66 |
56p315 |
56pa315 |
20mm |
|
56csc410 |
10 |
500 |
4 round |
1.0 |
6 |
6 |
15.7 |
66 |
56p410 |
56pa410 |
23mm |
|
56csc420 |
20 |
500 |
4 round |
1.0 |
6 |
6 |
15.7 |
66 |
56p420 |
56pa420 |
23mm |
|
56csc432 |
32 |
500 |
4 round |
2.5 |
16 |
9 |
28 |
66 |
56p432 |
56pa432 |
37mm |
|
56csc440 |
40 |
500 |
4 round |
2.5 |
16 |
9 |
28 |
66 |
56p440 |
56pa440 |
37mm |
|
56csc450 |
40 |
500 |
4 round |
2.5 |
16 |
9 |
28 |
66 |
56p450 |
56pa450 |
37mm |
|
56csc510 |
10 |
500 |
5 round |
1.0 |
6 |
6 |
15.7 |
66 |
56p510 |
56pa510 |
23mm |
|
56csc520 |
20 |
500 |
5 round |
1.0 |
6 |
6 |
15.7 |
66 |
56p520 |
56pa520 |
23mm |
|
56csc532 |
32 |
500 |
5 round |
1.0 |
6 |
6 |
15.7 |
66 |
56p532 |
56pa532 |
37mm |
|
56csc540 |
40 |
500 |
5 round |
1.0 |
6 |
6 |
15.7 |
66 |
56p540 |
56pa540 |
37mm |
|
56csc550 |
50 |
500 |
5 round |
1.0 |
6 |
6 |
15.7 |
66 |
56p550 |
56pa550 |
37mm | |
u insulation voltage
it conventional free air current
refer to page 43 for explanation of socket sonfigurations
refer to rear of catalogue for further details |
